Transcend ESD310C Dual-Interface UFD Review: Silicon Motion Powers Portable SSD in a Thumb Drive

Benchmarks such as ATTO and CrystalDiskMark help provide a quick look at the performance of the direct-attached storage device. The results translate to the instantaneous performance numbers that consumers can expect for specific workloads, but do not account for changes in behavior when the unit is subject to long-term conditioning and/or thermal throttling. Yet another use of these synthetic benchmarks is the ability to gather information regarding support for specific storage device features that affect performance.

Transcend claims read and write speeds of 1050 MBps and 950 MBps respectively. While these numbers are not hit with our ATTO benchmark settings (bypassing the write cache and using a queue depth of 4 for sequential accesses), we find that the writes are faster than a similarly built Kingston DataTraveler MAX A, with read performance being almost the same. In any case, ATTO benchmarking is restricted to a single configuration in terms of queue depth, and is only representative of a small sub-set of real-world workloads. It does allow the visualization of change in transfer rates as the I/O size changes, with optimal performance being reached around 512 KB for a queue depth of 4.

ATTO Benchmarks
TOP:	BOTTOM:

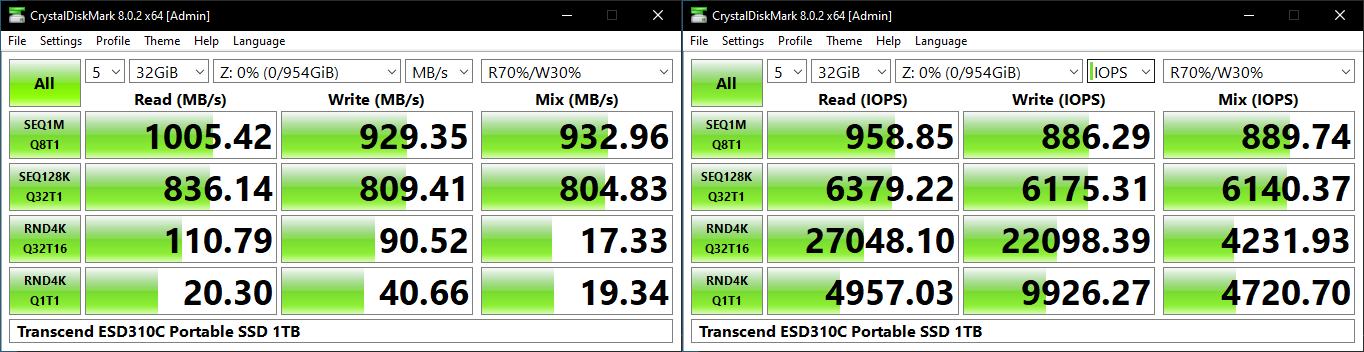

Our CrystalDiskMark benchmark configuration uses four different access traces for reads and writes over a configurable region size. Two of the traces are sequential accesses, while two are 4K random accesses. Internally, CrystalDiskMark uses the Microsoft DiskSpd storage testing tool. The ‘Seq128K Q32T1’ sequential traces use 128K block size with a queue depth of 32 from a single thread, while the ‘4K Q32T16’ one does random 4K accesses with the same queue configuration, but from multiple threads. The ‘Seq1M’ traces use a 1MiB block size. The plain ‘Rnd4K’ one uses only a single queue and single thread . Comparing the ‘4K Q32T16’ and ‘4K Q1T1’ numbers can quickly tell us whether the storage device supports NCQ (native command queuing) / UASP (USB-attached SCSI protocol). If the numbers for the two access traces are in the same ballpark, NCQ / UASP is not supported. This assumes that the host port / drivers on the PC support UASP.

CrystalDiskMark Benchmarks
TOP:	BOTTOM:

The numbers here are much closer to Transcend’s advertised claims. For a queue depth of 8, the reads cross the 1000 MBps barrier, and the writes are near the 950 MBps mark. However, as queue depth increases further, the benefits diminish. The increase in random IOPS with queue depth shows that both UASP and NCQ are supported, as indicated in the CrystalDiskInfo report. On a comparative basis, the performance comes up a bit short against the Kingston DTMAX A. The firmware is perhaps configured differently, and is an aspect that we will continue to focus in the other subsections of the review.

AnandTech DAS Suite – Benchmarking for Performance Consistency

Our testing methodology for storage bridges / direct-attached storage units takes into consideration the usual use-case for such devices. The most common usage scenario is transfer of large amounts of photos and videos to and from the unit. Other usage scenarios include the use of the unit as a download or install location for games and importing files directly from it into a multimedia editing program such as Adobe Photoshop. Some users may even opt to boot an OS off an external storage device.

The AnandTech DAS Suite tackles the first use-case. The evaluation involves processing five different workloads:

• AV: Multimedia content with audio and video files totaling 24.03 GB over 1263 files in 109 sub-folders
• Home: Photos and document files totaling 18.86 GB over 7627 files in 382 sub-folders
• BR: Blu-ray folder structure totaling 23.09 GB over 111 files in 10 sub-folders
• ISOs: OS installation files (ISOs) totaling 28.61 GB over 4 files in one folder
• Disk-to-Disk: Addition of 223.32 GB spread over 171 files in 29 sub-folders to the above four workloads (total of 317.91 GB over 9176 files in 535 sub-folders)

Except for the ‘Disk-to-Disk’ workload, each data set is first placed in a 29GB RAM drive, and a robocopy command is issue to transfer it to the external storage unit (formatted in exFAT for flash-based units, and NTFS for HDD-based units).

robocopy /NP /MIR /NFL /J /NDL /MT:32 $SRC_PATH $DEST_PATH

Upon completion of the transfer (write test), the contents from the unit are read back into the RAM drive (read test) after a 10 second idling interval. This process is repeated three times for each workload. Read and write speeds, as well as the time taken to complete each pass are recorded. Whenever possible, the temperature of the external storage device is recorded during the idling intervals. Bandwidth for each data set is computed as the average of all three passes.

The ‘Disk-to-Disk’ workload involves a similar process, but with one iteration only. The data is copied to the external unit from the CPU-attached NVMe drive, and then copied back to the internal drive. It does include more amount of continuous data transfer in a single direction, as data that doesn’t fit in the RAM drive is also part of the workload set.

The Transcend ESD310C comes in the middle of the pack in most benchmark components here. The main comparison is against the Kingston DTMAX A. Interestingly, the Kingston UFD starts off with a healthy lead, but in the later benchmarks, the ESD310C wrests a slight advantage. For all practical purposes, the casual user will notice no difference between them in the course of normal usage. However, power users may want to dig deeper to understand the limits of each device. To address this concern, we also instrumented our evaluation scheme for determining performance consistency.

Performance Consistency

Aspects influencing the performance consistency include SLC caching and thermal throttling / firmware caps on access rates to avoid overheating. This is important for power users, as the last thing that they want to see when copying over 100s of GB of data is the transfer rate going down to USB 2.0 speeds.

In addition to tracking the instantaneous read and write speeds of the DAS when processing the AnandTech DAS Suite, the temperature of the drive was also recorded. In earlier reviews, we used to track the temperature all through. However, we have observed that SMART read-outs for the temperature in NVMe SSDs using USB 3.2 Gen 2 bridge chips end up negatively affecting the actual transfer rates. To avoid this problem, we have restricted ourselves to recording the temperature only during the idling intervals. The graphs below present the recorded data.

AnandTech DAS Suite – Performance Consistency
TOP:	BOTTOM:

The first three sets of writes and reads correspond to the AV suite. A small gap (for the transfer of the video suite from the internal SSD to the RAM drive) is followed by three sets for the Home suite. Another small RAM-drive transfer gap is followed by three sets for the Blu-ray folder. This is followed up with the large-sized ISO files set. Finally, we have the single disk-to-disk transfer set. Given that the internal components are the same, the main comparison is against the Kingston DTMAX A. The firmware configuration in the ESD310C seems to impose a hard cap of 60C for the temperature and throttles speeds in order to keep the UFD within that envelop. Peak write speeds are higher for the ESD310C in the initial stages, but thermal throttling soon causes even read speeds to drop to around 750 MBps. Meanwhile, without a thermal cap, the DTMAX A remains at 1 GBps reads. The net result is that despite the higher initial write speeds, the ESD310C’s desire to not exceed 60C slows down the drive under extended use. Under additional stress, the lack of thermal throttling in the DTMAX A catches up with its performance. When transferring 100s of GBs in one-shot in the disk-to-disk segment, the write speeds drop down to USB 2.0 speeds. On the other hand, the ESD310C manages to complete the write segment of the disk-to-disk test faster. When moving to the read segment, thermal throttling again affects the ESD310C (dropping down to 500 MBps for an extended duration), while the DTMAX A can maintain speeds between 850 MBps and 1000 MBps.

There are a number of storage benchmarks that can subject a device to artificial access traces by varying the mix of reads and writes, the access block sizes, and the queue depth / number of outstanding data requests. We saw results from two popular ones – ATTO, and CrystalDiskMark – in a previous section. More serious benchmarks, however, actually replicate access traces from real-world workloads to determine the suitability of a particular device for a particular workload. Real-world access traces may be used for simulating the behavior of computing activities that are limited by storage performance. Examples include booting an operating system or loading a particular game from the disk.

PCMark 10’s storage bench (introduced in v2.1.2153) includes four storage benchmarks that use relevant real-world traces from popular applications and common tasks to fully test the performance of the latest modern drives:

• The Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. It involves a total of 204 GB of write traffic.
• The Quick System Drive Benchmark is a shorter test with a smaller set of less demanding real-world traces. It subjects the device to 23 GB of writes.
• The Data Drive Benchmark is designed to test drives that are used for storing files rather than applications. These typically include NAS drives, USB sticks, memory cards, and other external storage devices. The device is subjected to 15 GB of writes.
• The Drive Performance Consistency Test is a long-running and extremely demanding test with a heavy, continuous load for expert users. In-depth reporting shows how the performance of the drive varies under different conditions. This writes more than 23 TB of data to the drive.

Despite the data drive benchmark appearing most suitable for testing direct-attached storage, we opt to run the full system drive benchmark as part of our evaluation flow. Many of us use portable flash drives as boot drives and storage for Steam games. These types of use-cases are addressed only in the full system drive benchmark.

The Full System Drive Benchmark comprises of 23 different traces. For the purpose of presenting results, we classify them under five different categories:

• Boot: Replay of storage access trace recorded while booting Windows 10
• Creative: Replay of storage access traces recorded during the start up and usage of Adobe applications such as Acrobat, After Effects, Illustrator, Premiere Pro, Lightroom, and Photoshop.
• Office: Replay of storage access traces recorded during the usage of Microsoft Office applications such as Excel and Powerpoint.
• Gaming: Replay of storage access traces recorded during the start up of games such as Battlefield V, Call of Duty Black Ops 4, and Overwatch.
• File Transfers: Replay of storage access traces (Write-Only, Read-Write, and Read-Only) recorded during the transfer of data such as ISOs and photographs.

PCMark 10 also generates an overall score, bandwidth, and average latency number for quick comparison of different drives. The sub-sections in the rest of the page reference the access traces specified in the PCMark 10 Technical Guide.

Booting Windows 10

The read-write bandwidth recorded for each drive in the boo access trace is presented below.

Being read-intensive, the ESD310C manages to perform as well as NVMe-USB bridge-based PSSDs in the OS boot scenario.

Creative Workloads

The read-write bandwidth recorded for each drive in the sacr, saft, sill, spre, slig, sps, aft, exc, ill, ind, psh, and psl access traces are presented below.

Creative workloads involve a mixture of reads and writes, and bridge-based solutions offer better performance for such scenarios. On the other hand, the thermal cap probably results in the ESD310C perform slightly worse than the DTMAX A. However, it still enjoys a significant lead over the Phison-based OWC Envoy Pro Mini.

Office Workloads

The read-write bandwidth recorded for each drive in the exc and pow access traces are presented below.

The performance in office workloads is similar to what was seen in the creative workloads set. The bridge-based solutions perform better than the native UFD controller-based PSSDs. Within the Silicon Motion-based set, the ESD310C makes up the rear of the pack, but is still better than the Phison solution in the OWC Envoy Pro Mini.

Gaming Workloads

The read-write bandwidth recorded for each drive in the bf, cod, and ow access traces are presented below.

Gaming workloads are read-intensive and right up the alley of native UFD controllers. The thermal cap acts as a bit of a downer, but the ESD310C manages to sneak in towards the middle of the pack in all three components.

Files Transfer Workloads

The read-write bandwidth recorded for each drive in the cp1, cp2, cp3, cps1, cps2, and cps3 access traces are presented below.

The behavior seen in the creative and office workloads is repeated here – the SM2320 solutions are better off compared to the Phison solution, but the bridge-based ones perform better than the ESD310C handicapped by the thermal cap.

Overall Scores

PCMark 10 reports an overall score based on the observed bandwidth and access times for the full workload set. The score, bandwidth, and average access latency for each of the drives are presented below.

Almost all of the PCMark 10 storage workloads saw the ESD310C emerging as an also-ran when compared with other SM2320-based UFDs. However, it does perform better than the Phison-based UFD, and that is reflected in the overall score. The overall bandwidth and latency are presented in the graphs above.

The performance of the Transcend ESD310C portable SSD in various real-world access traces as well as synthetic workloads was brought out in the preceding sections. We also looked at the performance consistency for these cases. Power users may also be interested in performance consistency under worst-case conditions, as well as drive power consumption. The latter is also important when used with battery powered devices such as notebooks and smartphones. Pricing is also an important aspect. We analyze each of these in detail below.

Worst-Case Performance Consistency

Flash-based storage devices tend to slow down in unpredictable ways when subject to a large number of small-sized random writes. Many benchmarks use that scheme to pre-condition devices prior to the actual testing in order to get a worst-case representative number. Fortunately, such workloads are uncommon for direct-attached storage devices, where workloads are largely sequential in nature. Use of SLC caching as well as firmware caps to prevent overheating may cause drop in write speeds when a flash-based DAS device is subject to sustained sequential writes.

Our Sequential Writes Performance Consistency Test configures the device as a raw physical disk (after deleting configured volumes). A fio workload is set up to write sequential data to the raw drive with a block size of 128K and iodepth of 32 to cover 90% of the drive capacity. The internal temperature is recorded at either end of the workload, while the instantaneous write data rate and cumulative total write data amount are recorded at 1-second intervals.

Sequential Writes to 90% Capacity – Performance Consistency
TOP:	BOTTOM:

There are two main comparisons of interest – the first one is against the Kingston DTMAX A, because of the presence of the same controller and NAND flash in both products. The second one is the OWC Envoy Pro Mini, because it is a dual-interface UFD with a native controller too, albeit one based on a Phison controller.

The Transcend ESD310C starts off at peak speeds of 760 MBps (for the tested queue depth and transfer size) and maintains it for around 115s (total SLC cache of around 85 GB). After that, the write speed stabilizes around 60 MBps taking around 12300 seconds to complete the workload. The temperature at the end was just 60 C, which points to thermal throttling at play to keep the UFD skin temperature in check. On the other hand, the Kingston DTMAX A exhibits a range of speeds from 50 MBps to 650 MBps – very inconsistent, but manages to complete the workload in around 7400s. The OWC Envoy Pro Mini, which clocked in last in all the performance benchmarks, redeems itself admirably in this stress test. It completed the workload in the fastest time – 3630s, and exhibited only three distinct speed levels – 770 MBps, 270 MBps, and 220 MBps, with the first cliff happening at around 25 GB (SLC cache).

From a sequential data dump perspective, the Transcend ESD310C 1 TB version emerges as a good candidate for up to 85 GB of writes at a time – even better than the Kingston DTMAX A. Beyond that, the DTMAX A’s temperature cap of 80C+ lends it an advantage despite inconsistent speeds. However, the best dual-interface thumb drive for extended use with heavy writes is the OWC Envoy Pro Mini.

Power Consumption

Bus-powered devices can configure themselves to operate within the power delivery constraints of the host port. While Thunderbolt ports are guaranteed to supply up to 15W for client devices, USB 2.0 ports are guaranteed to deliver only 4.5W (900mA @ 5V). In this context, it is interesting to have a fine-grained look at the power consumption profile of the various external drives. Using the Plugable USBC-TKEY, the bus power consumption of the drives was tracked while processing the CrystalDiskMark workloads (separated by 5s intervals). The graphs below plot the instantaneous bus power consumption against time, while singling out the maximum and minimum power consumption numbers.

CrystalDiskMark Workloads – Power Consumption
TOP:	BOTTOM:

The Transcend ESD310C idles at around 0.77W, and has a peak power consumption of 2.28W. The Kingston DTMAX A with similar components (but only a Type-A interface, instead of Type-A + Type-C) idles at approximately the same number and has a peak of 2.31W. However, one important firmware configuration difference appears to be in the entry to a lower power consumption deep-sleep state after a period of inactivity. While the Kingston DTMAX A essentially turns off after 20 minutes or so of inactivity, the ESD310C doesn’t. This may be a matter of concern for use with mobile devices, particularly if the user has a tendency to let the UFD remain connected to the USB port after use.

The power consumption numbers are obviously much lower than that of bridge-based solutions like the Samsung T7 Touch and OWC Elektron. The absolute numbers are also lower than the ones for the Phison-based OWC Envoy Pro Mini, and there are no idling period ‘garbage-collection spikes’ in the power consumption.

Final Words

The Transcend ESD310C was introduced in April 2023 and is slowly making its way to retailers around the world. In the North American market, the SKUs are available on Newegg, with the 1 TB version retailing for $68. The 512 GB and 256 GB versions are available for $49 and $35 respectively. The 2 TB version has been announced, but is not available in retail yet. The main comparison point here in the dual-interface class is the OWC Envoy Pro Mini. The 1 TB version of the OWC UFD retails for $125 – almost double that of the Transcend product. Despite targeting the same dual-interface market, the two products are meant to appeal to different consumer classes. The Transcend ESD310C should satisfy the requirements of most mainstream consumers – folks who don’t expect to transfer 100s of GBs in one shot to the UFD. On the other hand, the OWC Envoy Pro Mini does have its own value proposition for prosumers with its unparalleled thermal design and excellent performance consistency under worst-case conditions.

After going through Silicon Motion’s pitch for the Transcend ESD310C, I was only mildly interested – as we had already evaluated the performance of the SM2320 UFD in multiple avatars earlier – starting with the controller preview using a Gen 2×2 interface in a bare board and Micron’s 96L 3D TLC, and moving on to various Kingston products such as the XS2000 (same NAND and Gen 2×2 interface, albeit with a proper thermal solution and firmware configuration changes), DataTraveler Max (same NAND, but a Gen 2 interface in a thumb drive form factor), and the DataTraveler Max Type-A (Kioxia BiCS5 112L 3D TLC and Gen 2 interface in a thumb drive form factor). Phison’s native UFD controllers such as the U17 and U18 have understandable not created as much of an impact as the SM2320 in the PSSD market, but OWC had delivered something compelling using a Phison platform in the Envoy Pro Mini with its dual-interface design. With the Transcend ESD310C, Silicon Motion has shown that its controller can be used in products providing similar connectivity features.

Transcend’s industrial design and firmware configuration for the ESD310C has enabled a much lower price point compared to the OWC Envoy Pro Mini. As outlined in different performance sub-sections, the knobs that have been tweaked (such as the SLC cache size, temperature cap for thermal throttling, etc.) make the product suitable for certain use-cases, and a middling performer in others.

Our recommendation for prosumers looking to purchase a dual-interface thumb drive continues to be the OWC Envoy Pro Mini. However, at around half its price and with a more compact design, the Transcend ESD310C makes a compelling case for the mainstream users.
