Voltage Lockdown: Investigating AMD’s Recent AM5 AGESA Updates on ASRock’s X670E Taichi

Before we head into the testing, we figured it would be a good idea to highlight what we found different (if anything) within the BIOS of ASRock’s X670E Taichi motherboard when updating the firmware from each successive version. Although nothing has changed from a GUI perspective, we can at least see some of the main settings that ASRock is presetting once AMD’s EXPO memory profiles are enabled.

Screenshot of ASRock X670E Taichi UEFI firmware: BIOS 1.18 (AGESA 1.0.0.5c)

While nothing has changed in regards to the GUI, the most significant change from going from AMD’s initial Ryzen 7000X3D-enabled BIOS is that users were able to set crazy levels of SoC voltage; the X670E Taichi would let us put 2.50 V on the SoC, which is ridiculously dangerous. As a reminder, the Ryzen 7000X3D chips are non-overclockable from a core frequency and VCore perspective, though they do support AMD EXPO memory profiles.

ASRock is clearly overshooting SoC voltage to ensure stability for users. When applying AMD EXPO on supported DRAM, all of ASRock’s X670E Taichi firmware variants from AGESA 1.0.0.5c to the latest BETA AGESA 1.0.0.7 (BETA) variant, the firmware would automatically apply 1.30 V to the SoC voltage, regardless of what memory frequency is used. If users opt for a lower spec kit such as DDR5-6000 with EXPO, applying 1.30 V is a little overkill, as we found it made no difference to stability until we went below 1.25 V on the SoC voltage.

ASRock X670E Taichi firmware applying changes when using EXPO on our DDR5-6000 EXPO kit.

Looking at the changes that applying memory with an AMD EXPO profile has on the settings, we can see that ASRock automatically changes some key voltage settings relating to SoC, VDDIO, DRAM VDD, and DRAM VDDQ. As we previously mentioned, ASRock automatically applies 1.30 V to the SoC voltage when you use EXPO memory profiles, or even XMP 3.0 profiles, as we found out. The VDD misc voltage was set to 1.10 V from auto, with the DRAM voltage (DRAM VDD/VDDQ) increasing to 1.350 V from 1.10 V. As per the memory specifications and how AMD’s Infinity Fabric works, the firmware automatically applied 2000 MHz for Infinity Fabric and changed the UCLK DIV from auto to equal the MEMCLK.

AMD AGESA 1.0.0.5c Up to 1.0.0.7: Analysis, Testing For Differentials

For our analysis of the changes that AMD’s updated AGESA firmware has on specific variables when put under heavy and intensive memory-focused workloads, we’ll be splitting the sections into two; memory at the JEDEC default specifications (settings on auto) and with EXPO enabled (DDR5-6000 CL34).

G.Skill Trident Z5 at DDR5-5200 (JEDEC) Settings

The key variables we’ll be focusing on include the following:

• Peak Temperatures across the CPU die, CPU CCD1 (3D V-Cache), and CPU CCD2 (in °C)
• Peak Voltages including CPU VDDCR/VDD, CPU VDDR_SoC (SoC Voltage)
• Peak Current, including CPU Core current and SoC current (in amps)
• Peak Power, including CPU PPT (from the AM5 socket) and SoC power

In our results, the CPU die temp max average is an average of both CCD1, CCD2, core temperatures and L3 cache temperatures. This isn’t to be confused with the average of the CPU die temp average.

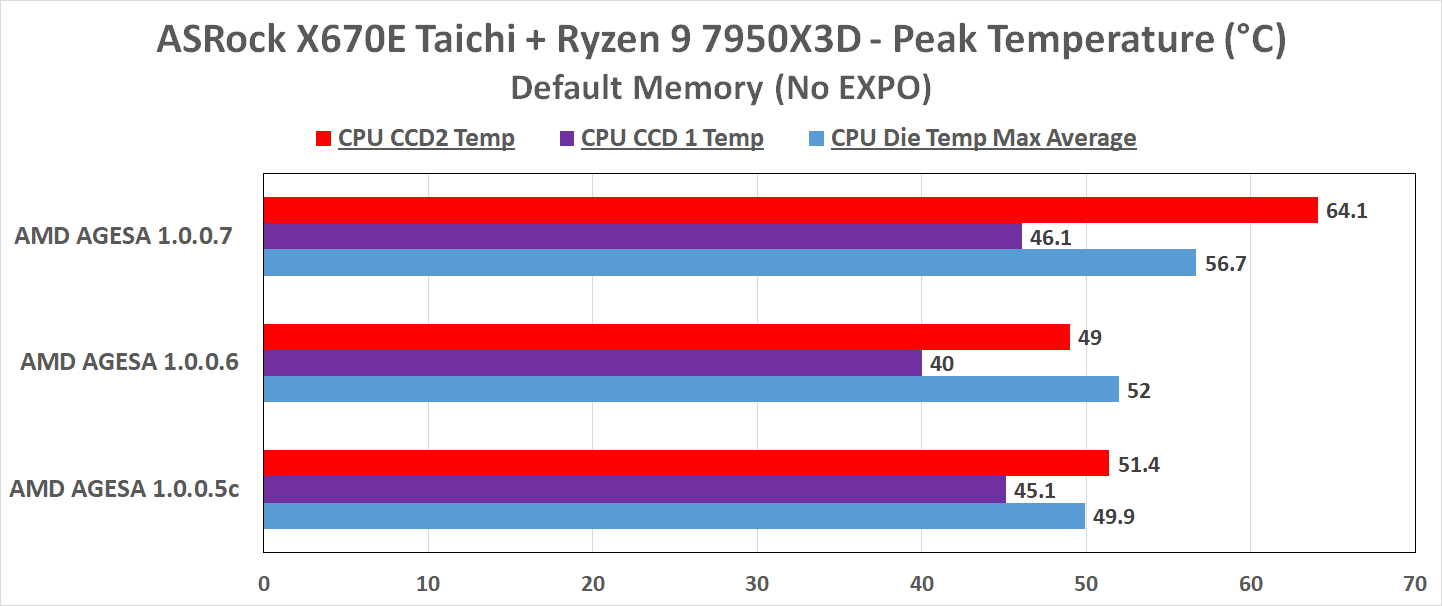

Starting with peak temperatures across both CCDs and the die, going from AGESA 1.0.0.5c to AGESA 1.0.0.7 (BETA), we can see that the CCD2 (non-V-Cache) was noticeably higher by just under 25%. The CCD (1) with 3D V-Cache was relatively consistent regarding peak temperatures, with a jump of just 2%. Overall, the CPU die temp, as with CCD1, was higher due to the different core temperatures on CCD2.

We can see that going to AGESA 1.0.0.6 from 1.0.0.5c resulted in slightly lower temperatures across all of the CCDs and overall die temp, but the latest AGESA 1.0.0.7 (BETA) (at the time of writing) was the hottest of all. One possible reason for the higher temperatures on AGESA 1.0.0.7 is that reducing power from the one component of the CPU, in this case, the SoC allows the actual Zen 4 cores slightly more headroom in terms of power.

Looking at the average temperatures across CCD1 and CCD2 and the overall die temperature, we can see that there wasn’t much variance between the different AGESA versions. Even on AGESA 1.0.0.7 with a higher temperature peak, the average is much more in line with the other AGESA versions.

Focusing on voltages, including CPU VDDCR_VDD (memory voltage) and CPU VDDR_SoC voltages, we can see they are consistently within acceptable margins. While we’re not focused on CPU VCore as it’s well within specification, and hasn’t been an issue as the Ryzen 7000X3D series chips are core frequency/voltage locked, the SoC and memory voltages are well within expected levels in line with our G.Skill Trident Z5 Neo DDR5-6000 memory’s specifications.

Although we observed higher temperatures across the board on AGESA 1.0.0.7 (BETA) without AMD’s EXPO enabled, we can see that AGESA 1.0.0.5c’s current peaked higher. While sustained current and voltages can spike higher than the averages, they aren’t sustained and shouldn’t be of concern, at least not from our testing.

Focusing on the averages of both the SoC and CPU Core currents, we can see that AGESA 1.0.0.6 is slightly more reserved than the initial Ryzen 7000X3D series launch firmware and the latest AGESA 1.0.0.7 (BETA).

The actual power values monitored using HWInfo show that AGESA 1.0.0.7 (BETA) has a higher peak power from the socket (PPT) than the two other AGESA versions. As we’ve seen from our testing, AGESA 1.0.0.6 with our ASRock X670E Taichi is more conservative on current and power, so temperatures are lower across the board. Pulling more power from the socket with AGESA 1.0.0.7 (BETA) and our Ryzen 9 7950X3D does explain why temperatures are higher, both at peak and average.

Our testing shows that AMD’s AGESA 1.0.0.7 (BETA) is consistent with other AGESA firmware versions at default memory settings. Still, we can see an increase in power draw and temperatures, at least on the ASRock X670E Taichi.

G.Skill Trident Z5 at DDR5-6000 (EXPO Enabled) Settings

Now onto our testing with the AMD EXPO memory profile enabled on our G.Skill Trident Z5 Neo DDR5-6000 CL34 kit. We’ve added another variable, with our DDR5-6000 kit also running with an applied SoC voltage of 1.25 V in the firmware.

A closer look at peak temperatures shows a slight variation between all three AGESA firmware variants. Using AMD AGESA 1.0.0.7 (BETA) with 1.25V on the SoC voltage, CCD2 peaked at 55.5°C, the CCD without the 3D V-Cache. This was a noticeably higher spike than expected, given that SoC voltage was inherently lower than the other runs (1.30 V on the SoC).

Interestingly, the initial launch BIOS (AGESA 1.0.0.5c) for Ryzen 7000X3D processors ran with the lowest temperature on CCD2, and we observed the lowest spike in temps on CCD1 (3D V-Cache) too. Looking at the maximum CPU die temperature average, all were within quite acceptable margins, with nothing noteworthy in this regard and nothing out of the ordinary.

Moving to the average temperatures, we see things are much more balanced between the three AMD AGESA firmware versions. AGESA 1.0.0.7 (BETA) at 1.25 V on the SoC voltage still averaged slightly warmer on the non-3D V-Cache enabled CCD than on AGESA 1.0.0.5c, which was less on average compared to AGESA 1.0.0.6.

Concentrating on peak voltages across both the memory and CPU SoC voltages, we can see that AMD AGESA 1.0.0.6 peaked slightly higher on memory voltage than the other revisions. SoC voltage is consistent across all three AGESA variants at 1.289, showing that ASRock’s firmware automatically setting 1.30 V for SoC is working well. At 1.25 V on AGESA 1.0.0.7 (BETA), our SoC voltage reading topped out at 1.239 V, which shows a bit of negative VDroop, a positive in this case.

Again, AGESA 1.0.0.6 is operating with more courage as it pulls more amps than other versions; it’s interestingly peaking at a higher current on the SoC voltage than the firmware before it, AGESA 1.0.0.6. It would have been thought that AMD’s quick fix BIOS to address SoC voltages would peak at lower variables, and it peaks around half an amp higher than the latest AGESA 1.0.0.7 (BETA) firmware.

Even setting 1.25 V on the SoC, the amperage pulled from the rail responsible for the SoC is lower than 1.30 V, which is expected as less power is fed through it. Although we didn’t experience any reported problems in our testing, CPU core current spiked higher on AGESA 1.0.0.6 than the other versions.

Focusing on average amps drawn from the SoC, things on the SoC balance back to expected levels, although there is not much variation comparing all three AGESA firmware. On average, with AGESA 1.0.0.6 and 1.0.0.7, we can see that the average CPU core current is noticeably higher than AGESA 1.0.0.5c, which is the initial launch BIOS for the X670E Taichi for Ryzen’s 7000X3D series.

Lastly, the peak power output with AMD’s EXPO memory profile enabled on our Ryzen 9 7950X3D with the ASRock X670E Taichi. As we can see, AMD AGESA 1.0.0.6 peaked out over 5 W higher on the AM5 socket than the other versions, and AGESA 1.0.0.5c seems to be the most conservative regarding this. For SoC power output, AGESA 1.0.0.6 spikes higher on power than the different versions, which could be one of the reasons that AMD replaced AGESA 1.0.0.6 so quickly.

Although the fundamental issue is clear in that some users are experiencing burnout of their Ryzen 7000X3D processors, the issue isn’t limited to just Zen 4-based SKUs with 3D V-Cache. The problem could potentially lay at several doors, at a silicon level, the motherboard’s implementation of SoC voltage, and, in some cases, an uncontrollable current rampaging through the chip and socket. As a highly destructive issue, which isn’t only killing the processor, but in some cases, taking the motherboard socket with it, AMD and motherboard vendors are experiencing a tumultuous time in diagnosing and implementing a solid fix to resolve these issues.

While writing this article, Gamers Nexus posted a new video where they sent the failed CPU to an external laboratory to investigate the issue. The ‘failure analysis report,’ as GN is calling it, uses an external and unnamed lab to do a variety of testing including and not limited to, C-mode scanning acoustic microscopy, X-ray analysis, a 3D CT scan, high magnification microscopy, and scanning using an electron microscope Xsec.

The biggest takeaway from Gamers Nexus’s most recent external lab-based analysis is that multiple manufacturing defects could have caused the issue. The lab in question couldn’t identify the issues specifically, and much of it at this point is based on assumptions; to assume isn’t a scientific method to establish anything from, only opinions.

From our testing, we set out not to look at trying to replicate the burnout issue but to try and understand what AMD’s AGESA updates are doing to different variables such as current, voltage, and power, typically focusing on the SoC, as that’s what AMD has primarily concentrated on capping to try and alleviate the issues.

Looking at an overall view of the peak current we experienced with our AMD Ryzen 9 7950X3D with ASRock’s X670E Taichi motherboard, we can see that everything is fundamentally well within control; this can be taken one of two ways. The first is that ASRock has done things correctly by applying 1.30 V to the SoC by default when applying memory overclocks via AMD’s EXPO and XMP profiles. The second is that other vendors haven’t been getting things as right, especially with reports of ASUS boards before the new AGESA firmware having OCP (over current protection) failures, resulting in too much current going through the chip.

In our testing and focusing primarily on the amperage levels, we can see that the initial Ryzen 7000X3D firmware, AGESA 1.0.0.5c, did spike higher than all the other firmware in terms of SoC current. This is the case at default memory settings and with AMD EXPO applied to our G.Skill Trident Z5 Neo DDR5-6000 memory kit. Despite the higher peaks in SoC current, the peak didn’t seem troublesome, but having a lower current is always advantageous in helping reduce overall power, heat, and in this case, not overloading and frying CPUs.

In our testing, the latest (at the time of writing) AGESA 1.0.0.7 (BETA) firmware had the lowest peak SoC current at default settings and the lowest amperage with EXPO applied. By setting 1.25 V instead of ASRock’s 1.30 V default on the SoC voltage, we managed to lower the peak SoC amperage.

Turning to the average current through the SoC rails, AMD’s AGESA 1.0.0.5c, as expected, has the highest average. AMD AGESA 1.0.0.7 (BETA), the newest at the time of writing, has the lowest average current levels. We reduced the average current by around 7% by setting 1.25 V on the SoC voltage instead of relying on ASRock’s ‘one size to fit all’ approach. Interestingly, despite having the highest peak SoC current, AGESA 1.0.0.6 has a very marginally lower average current through the SoC, by 0.01 A.

Final Words: Speculations on Ryzen 7000 Burnout Issue, But Nothing Conclusive

The biggest problem is that AMD’s Ryzen 7000 series processors (mainly X3D) are burning up inside the socket, frying, and sometimes totaling the AM5 socket. This is a big issue that AMD and its partners still need to address ‘properly.’ It’s not that they aren’t working tirelessly to rectify the problem, as it released three AGESA firmware updates in just over a month. AMD’s most significant strategy to fix the issue has been to curtail SoC voltage, which, as it has been found by Gamers Nexus, is at the root of the problem; it’s not the only problem, but rampaging and unattended SoC current is a notable cause for the destruction.

Perhaps one of the other core problems with all of these issues is all of the speculation. We aren’t interested in speculation because, as good as it is sometimes to speculate, assumptions can run wild. Even when Gamers Nexus sent one of their dead Ryzen 7000X3D CPUs to an external lab, the unnamed lab didn’t come up with anything particularly conclusive. While it is clear there’s a lot of speculation and analysis that’s already been done, as well as more likely to come shortly until the root cause is identified, the buck stops with AMD and its partners.

Image Credit: Speedrookie/Reddit

From our testing, we can highlight clearly that we didn’t experience any issues with the ASRock X670E Taichi, nor did we find any cause for concern. If anything, we can see one particular trend throughout our testing, and we’re making this claim based on our testing; AMD’s AGESA 1.0.0.6 looks rushed, and that’s certainly not without benefit to users and scrutiny. It benefits users by not allowing them to accidentally enable too much SoC voltage to the chip, which in the case of ASRock’s X670E Taichi on AGESA 1.0.0.5c, allowed us to set 2.50 V.

With the second BIOS fix through AGESA 1.0.0.7 (BETA), we observed more reserved SoC current, peak power from the SoC and more conservative average values. This is a step in the right direction in terms of lowering the likelihood that SoC voltage and current are going to kill the CPU. While AMD is rolling out its AGESA firmware, it’s fundamental to note that these revisions are listed as BETA, which gives AMD room to improve for a comprehensively tested and tweaked firmware designed to alleviate all of the issues above.

Exposure to higher voltage and heat can energize the atoms and molecules of a dielectric material and trigger chemical reactions that break down its structure, leading to dielectric degradation. Common mechanisms of degradation include thermal oxidation and electrical breakdown, which respectively create defects and conductivity in the material. The end result is the loss of insulation properties, increased leakage currents, and eventual material failure.

In the case of the Ryzen 7000/X3D series, the large current and heat are accelerating dielectric degradation and are not only weakening the integrity of the silicon and the internals but it’s effectively damaging them beyond a point of no return. This is why it’s important to operate with lower voltages which in turn lowers current, lowers total power output, and in turn, lowers temperatures. Overshooting so high on something with a fragile component added through vias as a 3D packaged die is, isn’t likely to turn out well, at least not from a theoretical standpoint.

It’s expected that AMD is going to soon roll out a new fully-fledged AGESA firmware to mitigate these issues. Which, according to Gamers Nexus, is likely a result of failing to implement proper fail-safes in over current protection (OCP), thereby in some cases letting current run rampant through the CPU. Whether this is down to motherboard vendors such as ASUS, GIGABYTE, and ASRock, or is something under AMD’s umbrella, is speculation at this point.

Our testing shows that the latest AGESA 1.0.0.7 (BETA) (BETA) firmware is undoubtedly better overall than the initial firmware. However, the news that AMD openSIL is set to replace AGESA firmware in 2026 is another variable entirely. The key takeaway is that, at least on the ASRock X670E Taichi, things are working as they should be with AGESA 1.0.0.7 (BETA), and we look forward to a full release (non-BETA) of their latest AGESA in the coming weeks.
